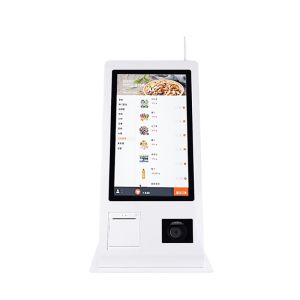

Compact Self-Ordering Kiosk with Integrated Thermal Label Printing

Name: Compact SelfOrdering Kiosk with Integrated Thermal Label Printing
Brand: ZXTLCD
Price: 1 USD

Wholesale Compact Self-Ordering Kiosk with Integrated Thermal Label Printing from china suppliers

Brand Name : ZXTLCD

Model Number : ZXTLCD-SOK032

Certification : CE/Rohs/FCC

Place of Origin : Guangdong, China

MOQ : 1

Price : negotiable

Payment Terms : L/C,T/T,MoneyGram,Western Union

Supply Ability : 2000 pcs per month

Delivery Time : 3-5 working days

Packaging Details : wooden case, carton, flight cases are optional

Resolution : 1920x1080

Frame : Aluminum Alloy

Mic : 8 Array Mic

Operating System : Android, Optional Windows Dual OS

Writing Method : pen/finger touch

Contact Now

Compact Self-Ordering Kiosk with Integrated Thermal Label Printing

The Compact Self-Ordering Kiosk is designed for businesses requiring efficient order management, featuring integrated thermal label printing for instant order tagging. Compact Self-Ordering Kiosk with Integrated Thermal Label Printing Its compact design makes it ideal for small spaces, while the high-resolution display and responsive touch interface ensure a smooth user experience. The kiosk supports advanced payment options and customizable software, making it a versatile solution for food delivery services, pharmacies, and retail stores.

Compact Self-Ordering Kiosk with Integrated Thermal Label Printing

Compact touchscreen display;Integrated thermal label printing for order tagging;High-resolution display for clear visuals;Responsive touch interface for easy navigation;Advanced payment options for cashless transactions;Customizable software for branding and promotions;Space-saving design for small locations;Energy-efficient operation

Compact Self-Ordering Kiosk with Integrated Thermal Label Printing

LCD Panel Parameters	Screen Size	32 inch
	Display area	698(H) X 391.8(V)mm
	Aspect Ratio	16 : 9
	LCD Type	a-Si TFT-LCD
	Max Resolution	1920 X 1080
	Display color	16.7M , 72% NTSC
	Brightness	350 cd/㎡
	Contrast Ratio	3000 :1
	Viewing angle(up/down/left/right)	89/89/89/89 (Typ.)(CR≥10)
	Response Time	20ms
	LCD Panel Life(hrs)	60,000(hrs)
	Field Frequency	60Hz
PCAP Touchscreen Panel Parameters	Touch style	Projected Capacitive Touch screen
	Touch points	10 points
	Cover Glass	Physical toughened Morse magnitude 7 explosion-proof
		Anti-microbial protection and Shatterproof Protection
		Optically bonded 3mm glass for low parallax
	The glass transmittance	>88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88%
	Response speed	< 6ms
	Accuracy of touch	More than 90% of the touch area ±2mm
	Touch ways	Fingers, touch pen
	Output format	The coordinate output
	Clicks time	Unlimited
	The smallest touch size	5mm
	Long resistance	Yes available
	Touch Interfaces	USB
	Operating temperature & Humidity	below10℃ ~ +50℃, ≤ 85%RH
	Storage temperature & Humidity	below20℃ ~ +60℃, ≤ 90%RH
Mini PC Parameters (Fan-less Industrial PC)	CPU	Intel Celeron J1900
	RAM	8GB
	SSD	64GB
	WIFI	150Mbps 802.11n wifi integate
	Network port	RJ45, 10M/100M Adaptive Ethernet
	Interface	2 * RJ45 GB Ethernet
	Interface	2 * RS232 Serial Port
	operating system	Win10 or win11 optional
Onboard interface	HDMI input	1
	VGA input	1
	DVI input	1
	USB Type B or Any USB Type optional	1
Parts(Built-in)	QR/Barcode Reader	Can recognize 1D barcode and 2D barcode
Parts(Built-in)	Receipt Printer	80mm Thermal printer with cutter
Power	Power supply	AC 100V~240V, 50/60Hz
	The Max power loss	≤ 45w
	Standby power loss	< 1W
Features	Operating temperature	0℃ ~ 50℃
Features	Storage temperature	below10℃ ~ +60℃
Accessories	The length of Power Cable	1.5m
	The length of HDMI Cable	2m
	The length of USB-A to USB-B Cable	1.5m
Versatile Mounting Solution	Wall Mounted	with walll mount bracket
Versatile Mounting Solution	Stand Holder(Optional)	Movable, can be with wheels on the base, height is adjustable
Package size	Machine body size	Customized
	Net weight	Customized
	Unit Package size	832 X 530 X 150mm
	The Gross weight of Unit Package	50kg

Ideal for food delivery services, pharmacies, retail stores, and order management systems.

If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
